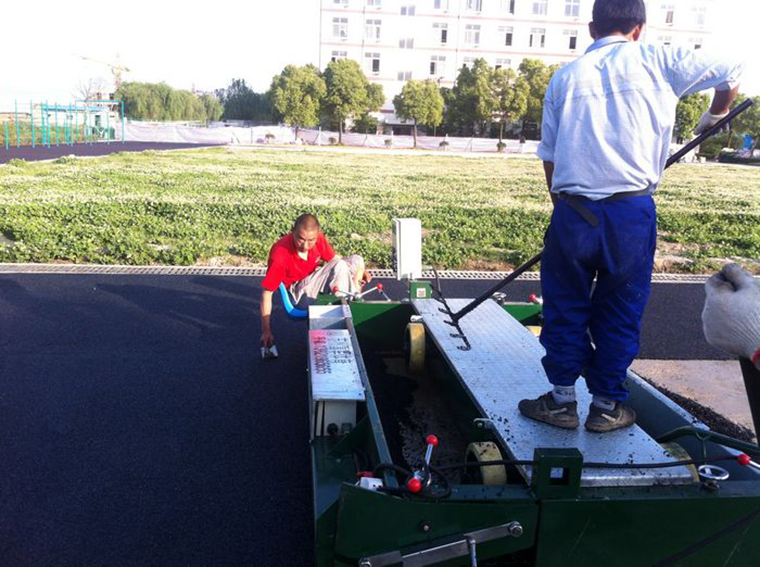

2.5m Paving Machine Sports Court Running Track Rubber Road Paver Laying Machine2.5m Paving Machine Sports Court Running Track Rubber Road Paver Laying Machine
Tel: +86-18553715372
Email: sales@chinacoalintl.com
Share
Its performance satisfied the requirement of sports playground, and achieve high quality technical indexes. It is high efficiency, low consumption, high quality and easy to operate, the long-term use authentication, deeply welcomed by domestic and foreign customers.
Name | Paver machine | |||
Model | TPJ-2.5 | TPJ-2.0 | TPJ-1.8 | TPJ-1.5 |
Actual Width | 2800mm | 2300mm | 2100mm | 1800mm |
Paving Width | 2500mm | 2000mm | 1800mm | 1500mm |
Moving Speed | 0.8-6m/min | 0.8-6m/min | 0.8-6m/min | 0.8-6m/min |
Paving Capability | 500 sq.m./h | 400 sq.m./h | 300 sq.m./h | 300 sq.m./h |
Power | 8kw | 8kw | 8kw | 8kw |
Temperature adjustment for electric heating board | 90-120 centigrade | 90-120 centigrade | 90-120 centigrade | 90-120 centigrade |
Machine Weight | 850kg | 700kg | 700kg | 600kg |
Dimension | 3000*1800*720mm | 2500*1700*720mm | 1900*1800*720mm | 2000*1700*720mm |
Packing Style | Wooden case | Wooden case | Wooden case | Wooden case |
